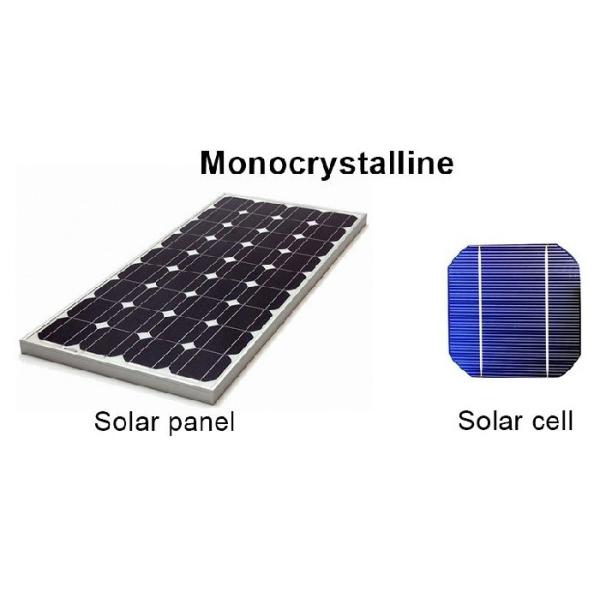

black frame 100W Monocrystalline Solar Module fit for water pump solar boiler
Product Description
Detailed Specification:100W Mono Solar Panels
1. Peak Power(Pmpp): 100W
2. Max Power Voltage (Vmpp):17.8V
3. Max Power Current (Impp): 5.55A
4. Max system voltage (V): 1000 VDC
5. Output connector: alligator clip,cigarette lighter,mc4
6. Operating Temperature: -40°C to +85°C
7. Cells: 4*9,
8. Power allowance: ±3%
9. Dimension: 1000*670*30mm
10. Weight: 8.5kg
11.Warranty:5 years
Detailed Product Description
| Mechanical Data |
| Cell type | Mono156mm*114mm |
| No.of cells | 36 in series(4*9) |
| Dimensions | 1100*670*30mm |
| Weight | 7kg |
| Electrical Data |
| Under STC ( Standard Test Conditions:1000W/m2 25℃, AM1.5) |
| Power | 80WM | | 90WM | | 100WM |
| Open circuit voltage(Voc) | 21.5V | | 21.5v | | 21.6V |
| Max. power voltage(Vmp) | 17.46V | | 17.48V | | 17.5V |
| Short circuit current(Isc) | 4.78A | | 5.4A | | 5.99A |
| Max. power current(Imp) | 4.4A | | 5.1A | | 5.55A |
| | | | | | | | | | | |
| Maximum System Voltage | DC1000V |
| Temperature Coefficient of Voc | -0.27%/°C |
| Temperature Coefficient of Isc | +0.045%/°C |
| Temperaturecoefficient of Pmax | -0.408%/°C |
| Maximum Series Fuse Rating | 15A |
| | |
| Junction Box | Ip67 rated/with 6 bypass diodes |
| Cable | 4.0mm2
(0.006inches2,symmetrical lengths(-)1100mm(43.30inches)and(+)1100mm(43.30inches)) |
| Tempered Glass | 3.2mm(0.13inches)tempered glass |
| Cell Encapsulation | EVA(Ethylene-vinyl-Acetate) |
| Back Sheet | composite film |
| Frame | Anodized aluminum alloy |
| Dimension | 1957*992*50mm(77.05*39.06*1.97inches) |
| Maximum Surface Load Capacity | 5400pa |
| Hail | maximun diameter of 25mm with impact speed of 23m-s-1 |
| Temperature Range | -40°C to + 85°C |
| Weight | 23.0kg(50.7bs) |
About us:
OLLIN is a professional manufacturer for kinds of Solar Panels with more than 8 years of
experience. Our main products includes: Mono and Poly Solar Panel, Solar power system,
Solar charger controller, Solar lights(Street, Garden, Yard, Farm) and so on.
What we can provide: high quality and very competitive price. A trustable and reliable
supplier for your business. Our business has been expanded to more than 30 countries and
earn a high reputation all over the world. Pls come to our website to get more information
about our business.
For any details, please don't hesitate to contact us any time!
FAQ
1.Q: Do you have your own factory?
A: Yes, we have. Our factory located in Yuyao city, Zhejiang province.Near Shanghai.
2.Q: How can I visit your factory?
A: Before you take off from your country, please let us know. We will arrange time to pick you up.
3.Q: Do you provide sample?
A: Yes, we can supply the sample
4.Q: Could you print our company LOGO on the nameplate and package?
A: Yes, we can do OEM.
5.Q: tell me the standard of package?
A: Plywooden box pallet or carton box pallet.
6.Q: Do you accept custom design on size and package?
A: Yes, if the size and package are reasonable.
